Products
We provide a diverse product lineup for high-precision inspection and automation. Discover solutions optimized for your various production environments.
Product details
Technical Specifications
Magnetic levitation transport systems optimized for diverse production environments.
Choose the model that best meets your requirements.
| Model |
|
|---|---|

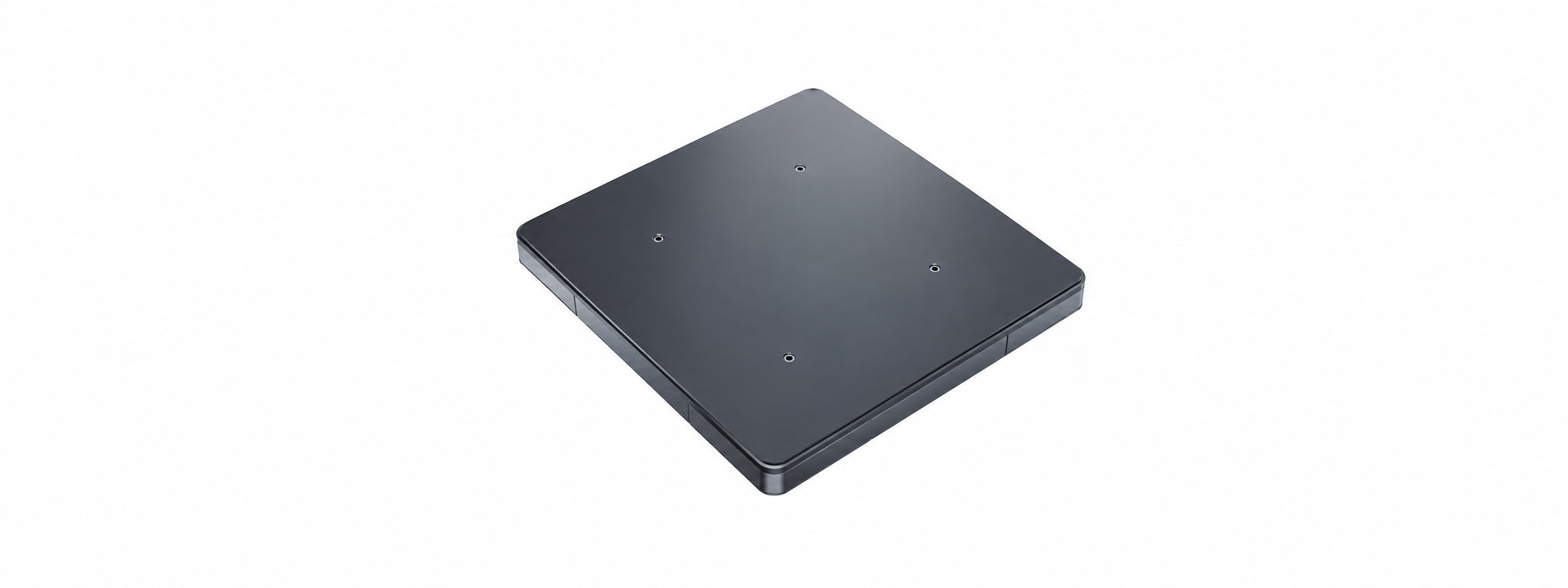

| Model | MiPS |
| Transfer Speed | 2 m/s |
| Repeatability | X-axis: ±15 μm / Y-axis: ±15 μm / Z-axis: ±0.1 mm / Rx-axis: 0.5° / Ry-axis: 0.5° / Rz-axis: 1° |
| Payload | 1–2 kg |

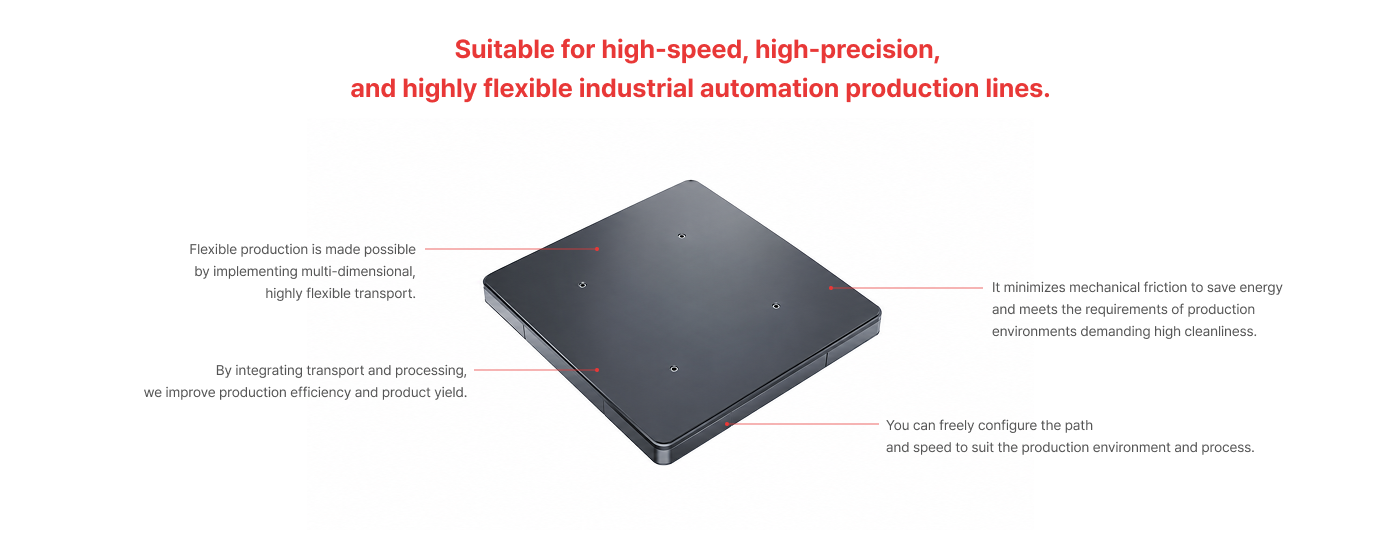

More Powerful Performance, Greater Productivity
MiTS combines modular design, high-speed precision control, and independent drive technology
to maximize space efficiency, reduce maintenance, and enable smart production.
Flexible Production, Limitless Possibilities
-
Designed for low-volume, high-mix production, the system enables rapid changes to product specifications, allowing manufacturers to flexibly respond to personalized market demands.
-
With a highly integrated system design, the system reduces installation requirements and minimizes the installation footprint through its compact structure.
-
Its highly flexible transport capabilities, supporting multiple directions, open up new possibilities for modern production environments.
Safety and Quality, Built on Trust
A Safe and Reliable Solution
Complying with international human-machine interface (HMI) safety standards and certified with CE safety certification, the system provides a safe and reliable working environment.
With an IP65 protection rating, the system provides water, dust, and corrosion resistance while maintaining stable performance in a wide range of industrial environments.
엄격한 품질관리, 검증된 신뢰성
Through ISO-certified quality management systems and rigorous manufacturing and quality control processes, we maintain consistent product performance and quality while delivering high reliability.
Intuitive Software, MiTS-MS
-
With its user-friendly, graphical work editing system, even first-time users can easily configure and set up production lines, as well as efficiently perform commissioning and operation.
-
The system supports secondary development, enabling users to freely develop customized applications tailored to their production environments and requirements.
Intuitive Software, MiTS-MS
Power Module
Converts the incoming power into a stable and reliable power supply required by the equipment, supporting stable system operation.

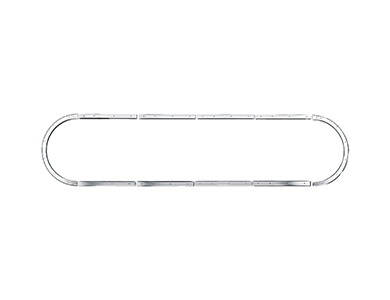

Guide Rail Module
Precisely guides and supports component movement for stable and accurate transport. Flexibly configurable to meet various production environments and requirements.
Master Module
MiTS-MS-based Master Module supports configuration, path planning, and motion simulation. Bidirectional communication enables precise synchronized control.
Slave Module
The Slave Module primarily performs internal data communication, mover displacement measurement, and motor drive control.
Mover Module
The Mover Module offers a variety of structural configurations to meet the requirements of different applications.
