Products
We provide a diverse product lineup for high-precision inspection and automation. Discover solutions optimized for your various production environments.
Product details
Technical Specifications
We offer a range of magnetic levitation transport system models to provide solutions optimized for different production environments and processes. Select the product that best meets your requirements to achieve optimal performance and efficiency.
| Model |
|
|
|---|---|---|

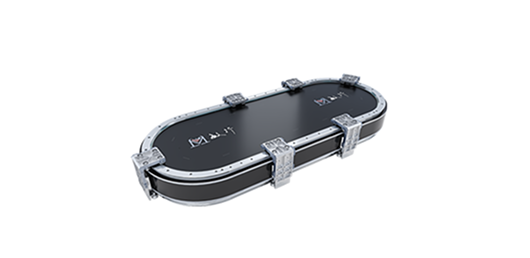

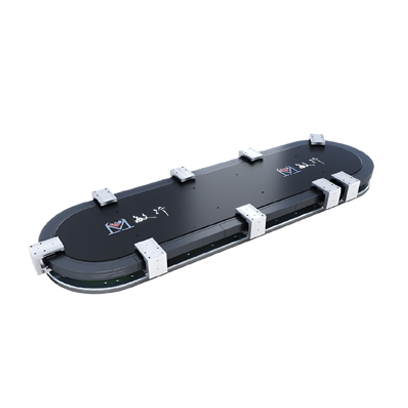

| Model | MiTS-LH | MiTS-LV |
| Load Capacity | 0–25 kg | 0–40 kg |
| Repeatability | ±5 μm | ±5 μm |
| Max. Operating Speed | 10 g | 10 g |
| Max. Acceleration | 10 g | 10 g |
| Rated Thrust | 35 N × n (No. of Moving Coil Assemblies) | 70 N × n (No. of Moving Coil Assemblies) |
| Peak Thrust | 70 N × n (No. of Moving Coil Assemblies) | 140 N × n (No. of Moving Coil Assemblies) |
| Input Voltage | 220 V, 50/60 Hz | 220 V, 50/60 Hz |
| Internal Communication Interface | EtherCAT | EtherCAT |
| External Communication Interface | EtherCAT, Serial Communication, TCP, S7, PROFINET, etc. | EtherCAT, Serial Communication, TCP, S7, PROFINET, etc. |

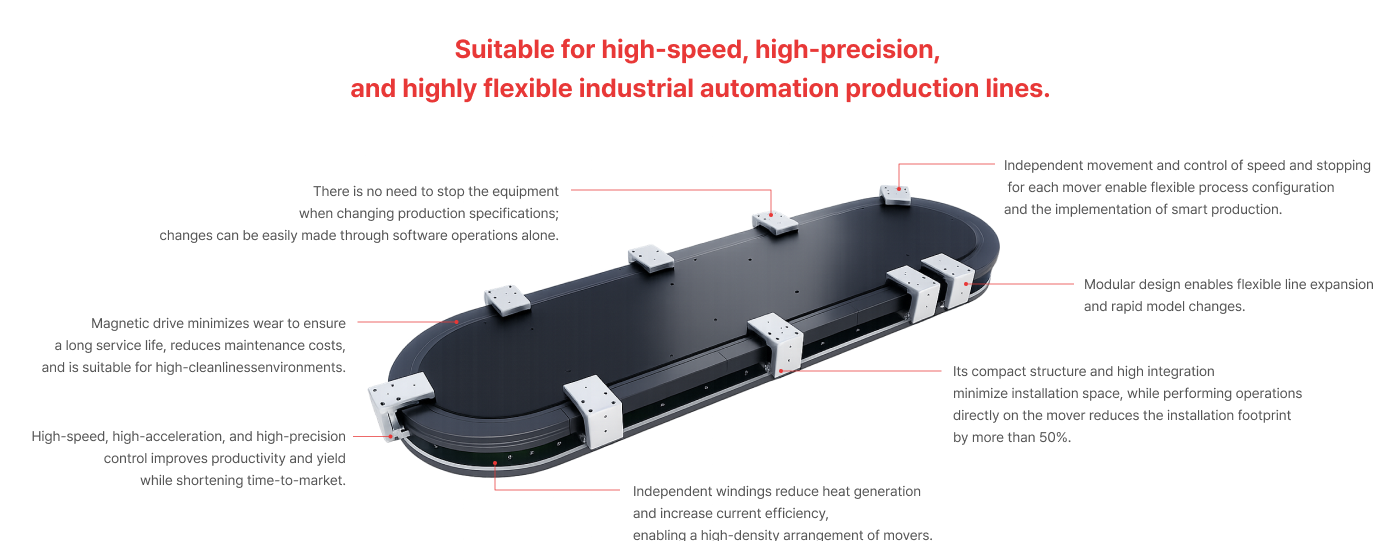

More Powerful Performance, Greater Productivity
MiTS combines modular design, high-speed precision control, and independent drive technology
to maximize space efficiency, reduce maintenance, and enable smart production.
Flexible Design, Outstanding Scalability
-
With a flexible track design, the system can be freely configured into various layouts. From circular and rectangular configurations to complex layouts, tracks can be seamlessly connected to flexibly accommodate diverse production processes and space constraints.
-
Its compact design allows for easy integration into equipment, maximizing space utilization.
-
With a mover center-to-center spacing of just 80 mm, the system enables a denser mover arrangement, delivering high production efficiency even in space-constrained environments.
Safety and Quality, Built on Trust
A Safe and Reliable Solution
Complying with international human-machine interface (HMI) safety standards and certified with CE safety certification, the system provides a safe and reliable working environment.
With an IP65 protection rating, the system provides water, dust, and corrosion resistance while maintaining stable performance in a wide range of industrial environments.
Strict Quality Control, Proven Reliability
Through ISO-certified quality management systems and rigorous manufacturing and quality control processes, we maintain consistent product performance and quality while delivering high reliability.
Intuitive Software, MiTS-MS
-
With its user-friendly, graphical work editing system, even first-time users can easily configure and set up production lines, as well as efficiently perform commissioning and operation.
-
The system supports secondary development, enabling users to freely develop customized applications tailored to their production environments and requirements.
Intuitive Software, MiTS-MS

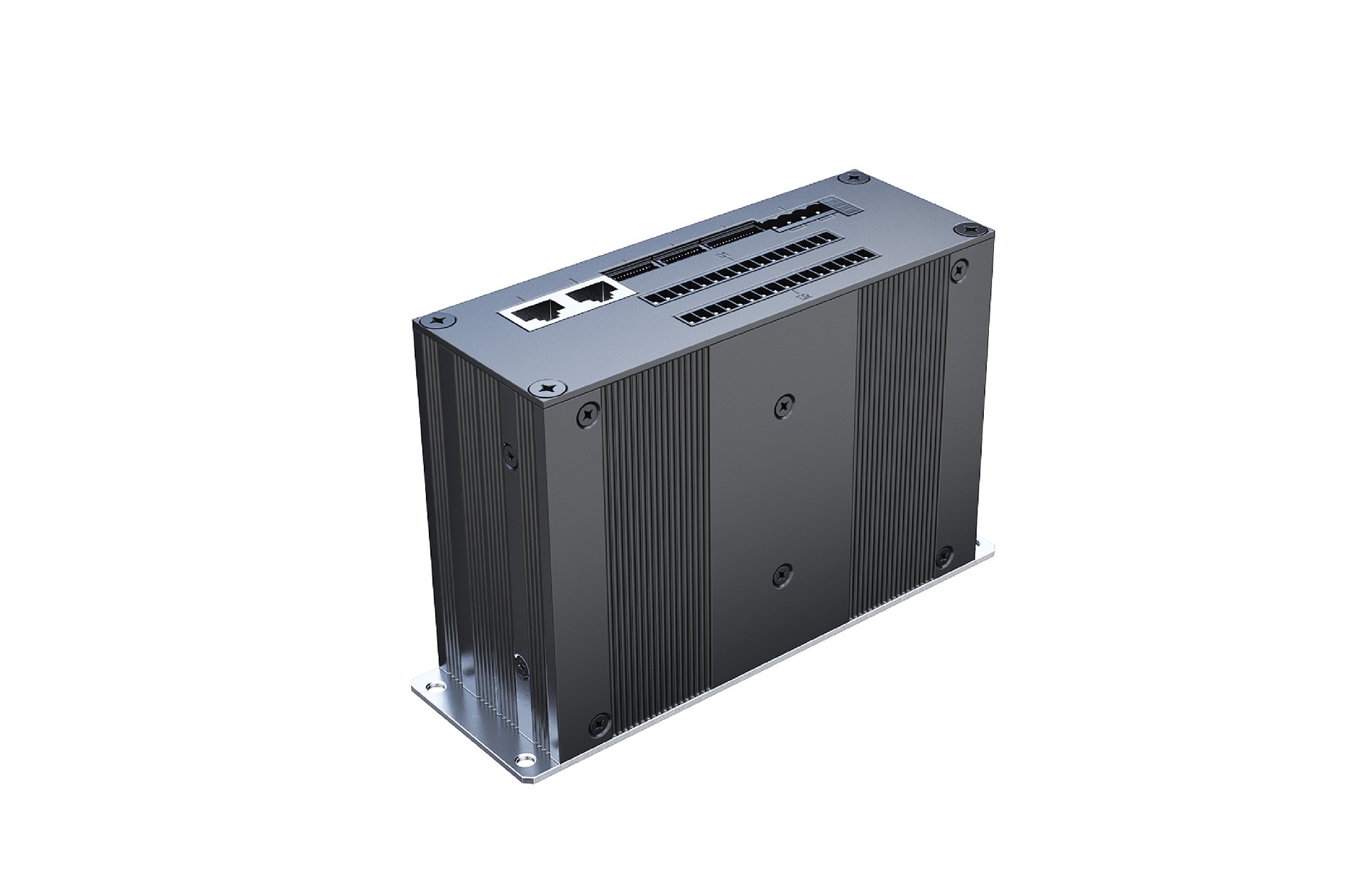

Power Module
Converts the incoming power into a stable and reliable power supply required by the equipment, supporting stable system operation.

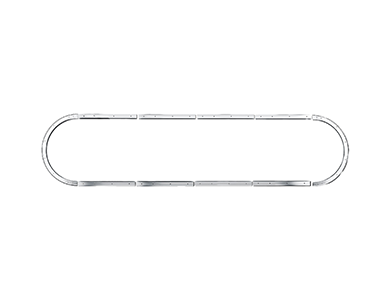

Guide Rail Module
Precisely guides and supports component movement for stable and accurate transport. Flexibly configurable to meet various production environments and requirements.
Master Module
MiTS-MS-based Master Module supports configuration, path planning, and motion simulation. Bidirectional communication enables precise synchronized control.
Slave Module
The Slave Module primarily performs internal data communication, mover displacement measurement, and motor drive control.

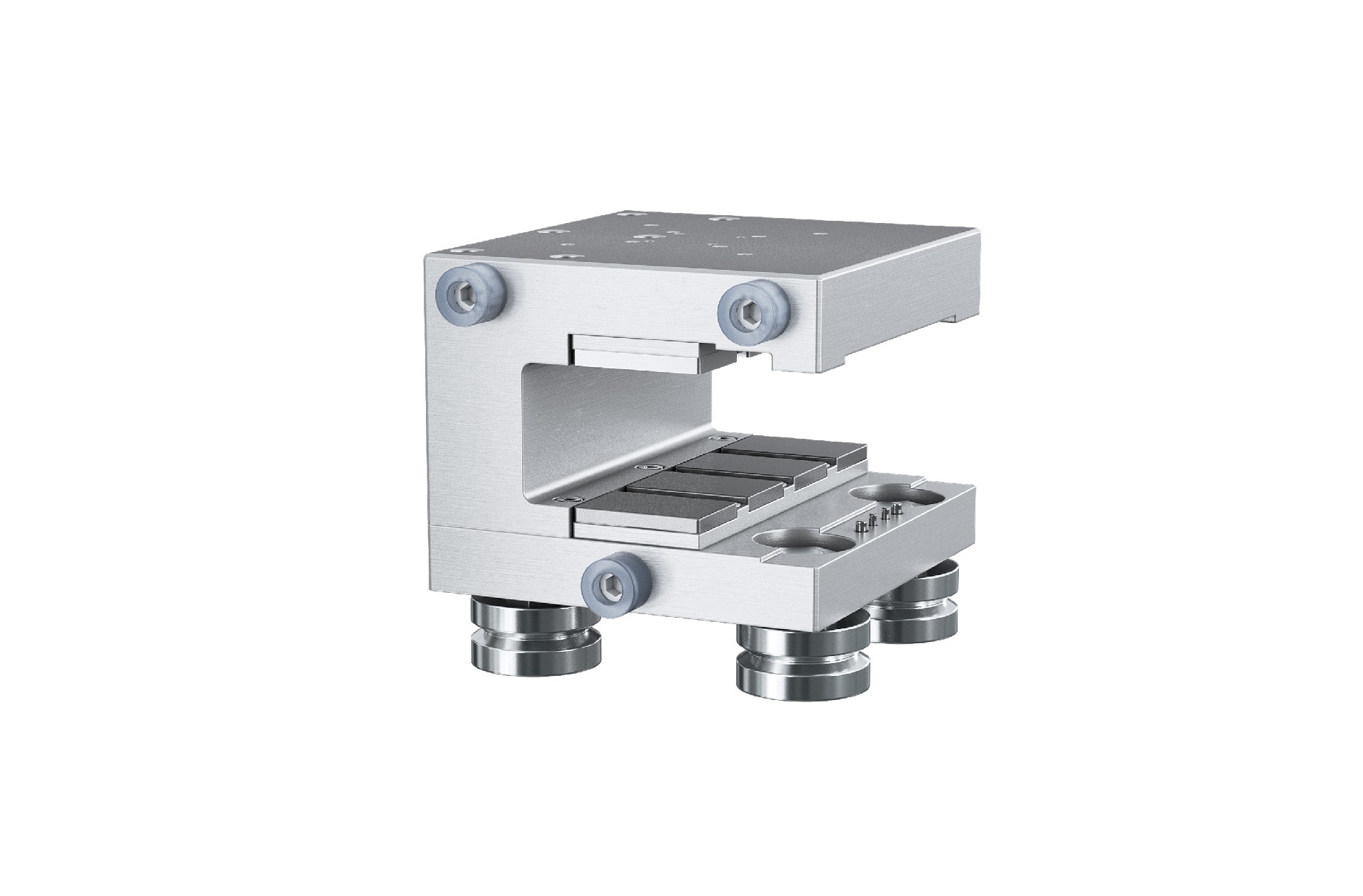

Mover Module
The Mover Module offers a variety of structural configurations to meet the requirements of different applications.
