Products
We provide a diverse product lineup for high-precision inspection and automation. Discover solutions optimized for your various production environments.
Product details
Technical Specifications
Magnetic levitation transport systems optimized for diverse production environments.
Choose the model that best meets your requirements.
| Model |
|
|---|---|

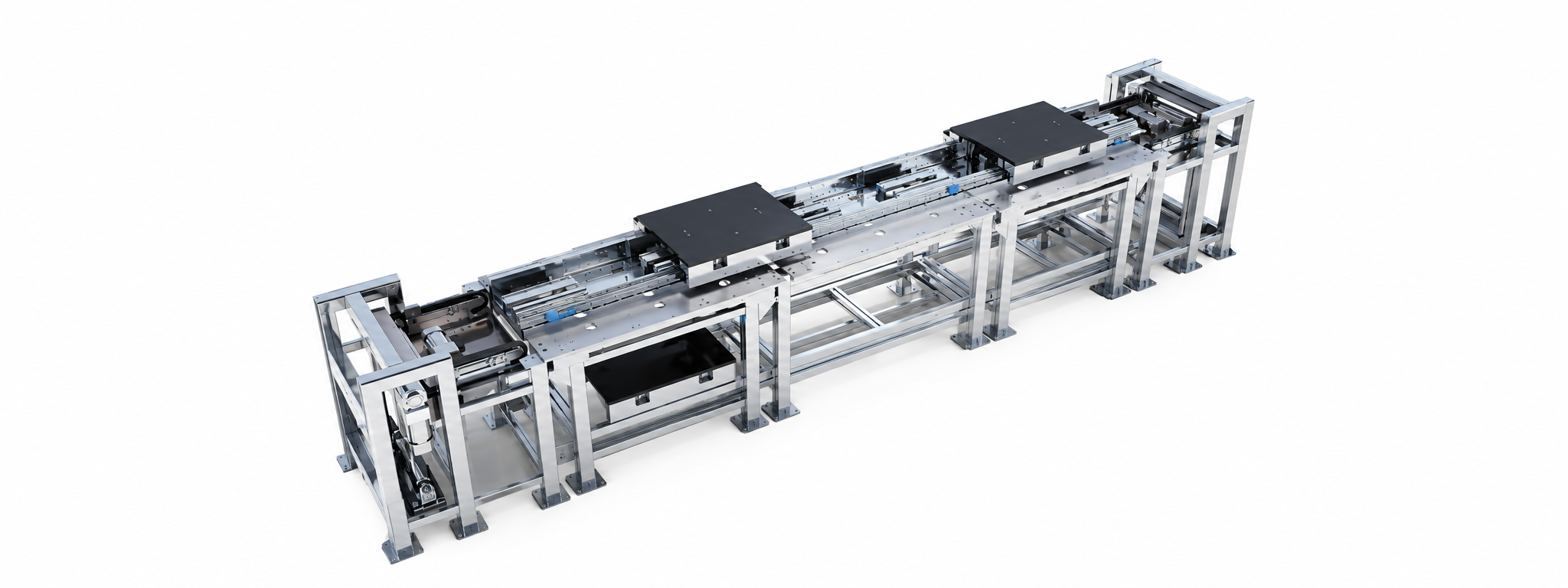

| Model | MiTS-H |
| Load Capacity | 200–3000 kg |
| Repeatability | ±15 μm |
| Max. Operating Speed | 2.5 m/s |
| Max. Acceleration | 3 g |
| Rated Thrust | 300 N × n (No. of Moving Coil Assemblies) |
| Peak Thrust | 600 N × n (No. of Moving Coil Assemblies) |
| Input Voltage | 220 V, 50/60 Hz |
| Internal Communication Interface | EtherCAT |
| External Communication Interface | EtherCAT, Serial Communication, TCP, S7, PROFINET, etc. |
More Powerful Performance, Greater Productivity
MiTS combines modular design, high-speed precision control, and independent drive technology
to maximize space efficiency, reduce maintenance, and enable smart production.

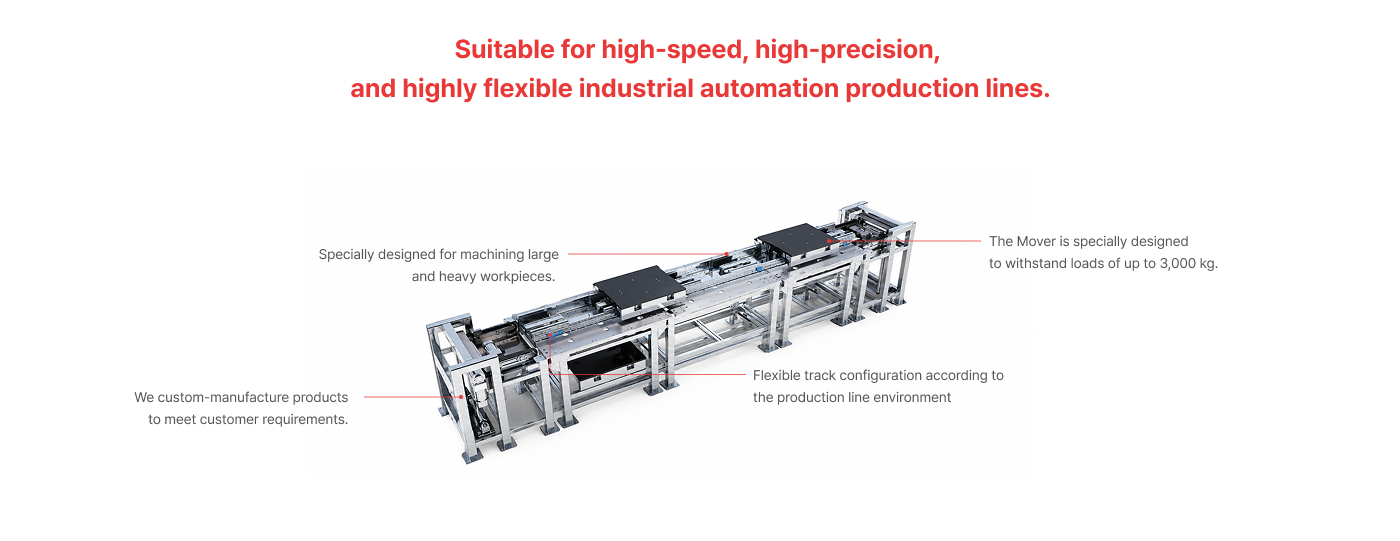

High-Efficiency Transport, Effortless Heavy-Load Handling
-
Designed for large and heavy component processing environments, the system reliably supports high-load operations of up to 3,000 kg.
-

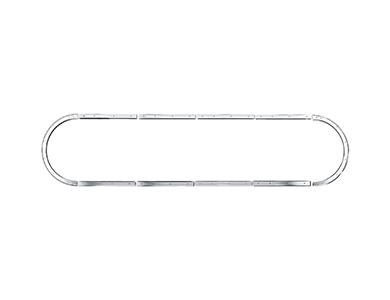

Supporting flexible connection configurations in both horizontal and vertical directions, the system can also accommodate ring-shaped layouts, allowing the track configuration to be flexibly designed to suit the space requirements of the production line.
-
The high-load motor is designed to balance the magnetic forces on both sides, maintaining a stable air gap and enabling high-precision positioning through the use of high-precision sensors. In addition, optimized load distribution across the bearing rollers enhances durability and extends service life.
Safety and Quality, Built on Trust
A Safe and Reliable Solution
Complying with international human-machine interface (HMI) safety standards and certified with CE safety certification, the system provides a safe and reliable working environment.
With an IP65 protection rating, the system provides water, dust, and corrosion resistance while maintaining stable performance in a wide range of industrial environments.
Strict Quality Control, Proven Reliability
Through ISO-certified quality management systems and rigorous manufacturing and quality control processes, we maintain consistent product performance and quality while delivering high reliability.
Intuitive Software, MiTS-MS
-
With its user-friendly, graphical work editing system, even first-time users can easily configure and set up production lines, as well as efficiently perform commissioning and operation.
-
The system supports secondary development, enabling users to freely develop customized applications tailored to their production environments and requirements.
Intuitive Software, MiTS-MS
전원 모듈
Precisely guides and supports component movement for stable and accurate transport. Flexibly configurable to meet various production environments and requirements.
Guide Rail Module
Precisely guides and supports the movement of components to achieve stable and accurate transport. The module can be flexibly configured to meet various production environments and requirements.
Master Module
MiTS-MS-based Master Module supports configuration, path planning, and motion simulation. Bidirectional communication enables precise synchronized control.
Slave Module
The Slave Module primarily performs internal data communication, mover displacement measurement, and motor drive control.
Mover Module
The Mover Module offers a variety of structural configurations to meet the requirements of different applications.
