Control Devices
주요 특징
사양표

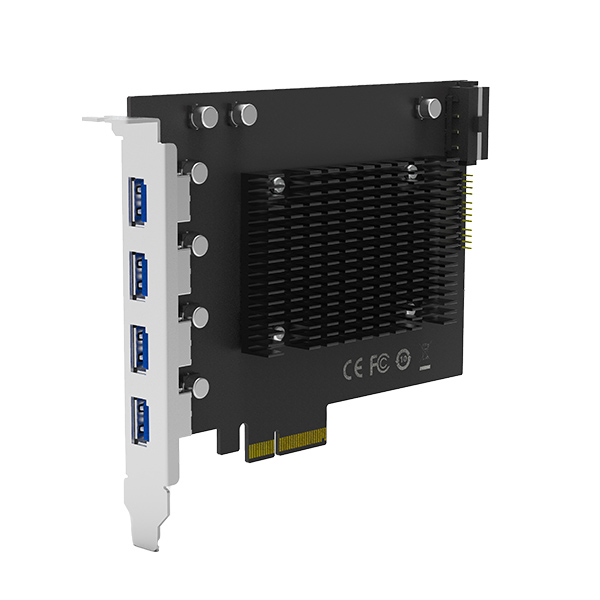

| LCT-U04L-H specification | |
| System | |
| Bus Type | PCI Express 2.0 x4 |
| Main Control Chip | ASM3142 |
| Interface Type | USB3.0 Type-A |
| Number of Interfaces | 4 |
| Interface Speed | 5Gbps |
| Power Supply | Default PCIe slot, supported by 12V ATX power supply |
| Power Consumption | Maximum power output per channel: 4.5W @ 5 VDC |
| Operating System | Win7/Win10/Win11, Linux |
| Environment | |
| Operating Temperature | 0℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 85℃ |
| Humidity | Operating humidity: 95% at 40°C, non-condensing Storage humidity: 95% at 60°C, non-condensing |

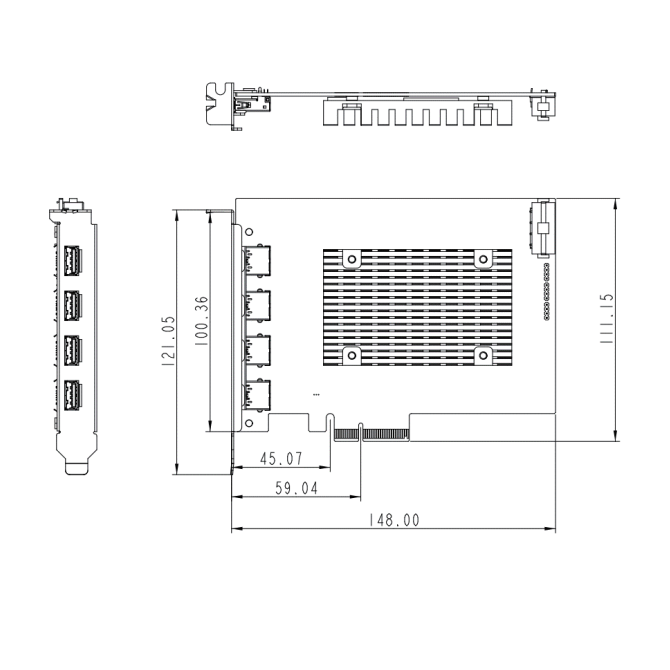

| Dimensions | |
| Dimensions | Full-height PCIe card |
| Size | 148 × 111 mm (excluding the bracket) |
