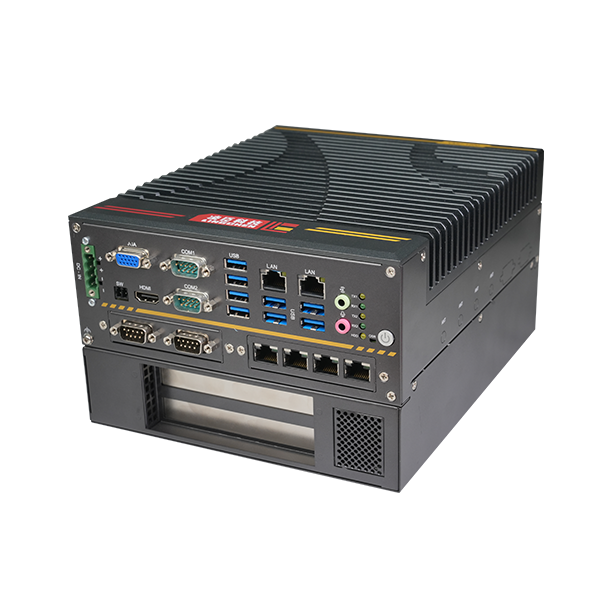

High-Performance Compact Embedded BOX VMC-1200Q2K4P
Product Description
- Supports Intel® 12th, 13th, and 14th Generation Core™ i3, i5, i7, and i9, as well as Pentium® and Celeron® CPU
- Supports the Q670 chipset
- Supports 2x DDR5 SO-DIMM at 4800, 5200, or 5600 MHz, up to 64 GB
- Supports three display outputs: HDMI, VGA, and DP++ (optional)
- Supports 6 LAN ports, 6 COM ports, and 10 USB ports
- Supports 1 M.2 2230 slot, 1 M.2 2242/2280 slot, 1 Mini-PCIe slot, and 1 M.2 3042/3052 slot
- Supports 1 x PCIe x16 + 1 x PCI
- Supports 19–24 V wide-voltage input; optional 9–36 V wide-voltage input
- Supports Windows 10 and Linux OS
Product Details
Description
Supports Intel® 12th, 13th, and 14th Generation Core™ i3, i5, i7, and i9, Pentium®, and Celeron® CPUs; supports the Q670 chipset; supports 2x DDR5 SO-DIMM memory, supports three displays, 6 LAN ports (4 of which support PoE), 6 COM ports, multiple expansion interfaces, and optional 9–36V wide-voltage input. This product is suitable for use in AGVs, automation, rail transit, and other industries.
Specifications
| VMC-1200Q2K4P product specifications | ||
| System | ||
| processor | Intel® 12th/13th/14th Generation CoreTM i3 /i5/i7/i9, Pentium® , Celeron® CPU | |
| Chipset | Q670 | |
| Memory | 2x DDR5 SO-DIMM 4800/5200/5600Mhz，up to 64 GB | |
| graphical | CPU integrated graphics card | |
| storage | 1 x M-Key M.2 2242/2280（PCIex4/SATA）slot，2 x 2.5" SATA 3.0 HDD/SSD | |
| operating system | Windows 10, Linux | |
| Watchdog timer | Programmable 255 levels timer interval, from 1~255 sec/min | |
| External Interface | ||
| Network port | 1 x RJ45 Intel® PCI-E LAN for 10/100/1000 Mbps I219-V 1 x RJ45 Intel® PCI-E LAN for 10/100/1000/2500 Mbps I225-V 4x RJ45 Intel® 10/100/1000 Mbps I210-AT，Supports POE functionality | |
| display | 1x HDMI: Maximum resolution 4096x2160@60Hz 1x VGA: Maximum resolution 1920x1200 1x DP++(optional) | |
| audio frequency | 1 x Audio(Line-out & Mic-in ) | |
| Serial port | 2x RS232/422/485，2xRS232，expandable to 2xRS232 | |
| USB | 8 x USB3.2 (Gen1) | |
| Indicator Light | 1x HDD LED 2x COM1 LED for Rx1 and Tx1 2x COM2 LED for Rx1 and Tx1 1x Switch Button | |
| Reset | 1x Reset button | |
| Remote Switch | 1x Remote ON-OFF | |
| Power Supply | 1 x DC IN 4-pin Phoenix connector, 19–24 V, optional 9–36 V wide-range input | |
| internal Interface | ||
| Extension Interface | 1 x E-Key M.2 2230 slot (PCIe x1/USB2.0)，1x Mini-PCIe slot(PCIe x1/USB2.0/SATA) 1 × B-Key M.2 3042/3052（USB3.0/USB2.0 Supports 4G/5G modules） | |
| USB | 1x USB 2.0 (Type-A), 1x USB 2.0 (1-pin header to 2-port) | |
| Serial Port | 4x RS232 pin header | |
| SATA | 2x SATA3.0（Supports RAID 0/1） | |
| TPM | TPM2.0 (optional) | |
| Extension Interface | ||
| Extension Interface | 2-Slot Expansion: 1x PCIe x16 + 1x PCI | |
| environment | ||
| Operating temperature | -10°C ~ 60°C, 0.7 m/s airflow (65W CPU with industrial SSD, paired with a CPU fan cooler) -10°C ~ 60°C, 0.7 m/s airflow (35W CPU with industrial SSD) 0°C ~ 30°C, 0.7 m/s airflow (HDD) | |
| Storage temperature | -40°C~85°C | |
| humidity | Operation humidity: 5%~95%, non-coagulation Storage humidity: 5%~95%, non-coagulation | |
| Random Vibration | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation | |
| Sine Wave Vibration | 5~500Hz,2G Non-Operation | |
| Mechanical impact | Operation: 10G@11ms Non-operation: 30G@11ms | |
| Machine Architecture | ||
| Dimensions | 230*192*125 mm | |
| Certification | ||
| Certification | CE/FCC | |
